ATN Optics

ATN TICO LTV 256×192 THERMAL CLIP-ON

TURN YOUR DAYTIME SCOPE INTO THE ULTIMATE PREDATOR THERMAL SIGHT

Experience a game-changing transformation as you effortlessly upgrade your daytime optics into a cutting-edge thermal scope, unlocking unprecedented hunting and observation benefits.

How it works

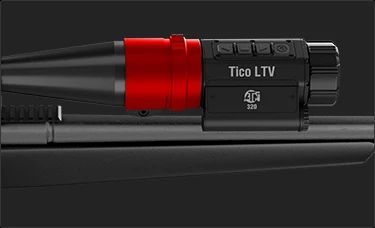

SCOPE MOUNTING SOLUTION

ATN clip-on can be connected to a rifle scope using the thread for a Scope Mounting solution.

*optional accessory

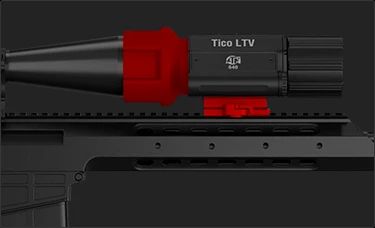

QDM

Tico LTV clip-on seamlessly attaches to any scopes using the Quick Detach Mount (QDM), offering a swift and secure way to enhance your sighting experience.

*included accessory

No Zeroing

Simply install the TICO LTV onto your daytime scope, align it with the reticle, and you’re good to go!

Ultra Low Power Consumption

Light Weight

0.9 lb
420 g

Technical Specifications

ATN TICO LTV 256×192 Thermal Clip-On – Technical Specifications

  • SKU: TICOLTV225X

  • Sensor: Uncooled, 256×192 pixels, 12μm pitch

  • Objective Lens: 25 mm

  • Resolution: 256×192

  • Magnification: 1–4×Field of View: 7.0° (H) × 5.4° (V)

  • Display: OLED, 1024×768

  • Eye Relief: Unlimited

  • Color Modes: 10

  • Monocular Mode: Yes (with optional eyepiece adapter)

  • Digital Zoom: 2×, 4×

  • Mount: Modular adapter or QDM (Quick Detach Mount)

  • Battery: 1× 18650 Li-ion (removable)

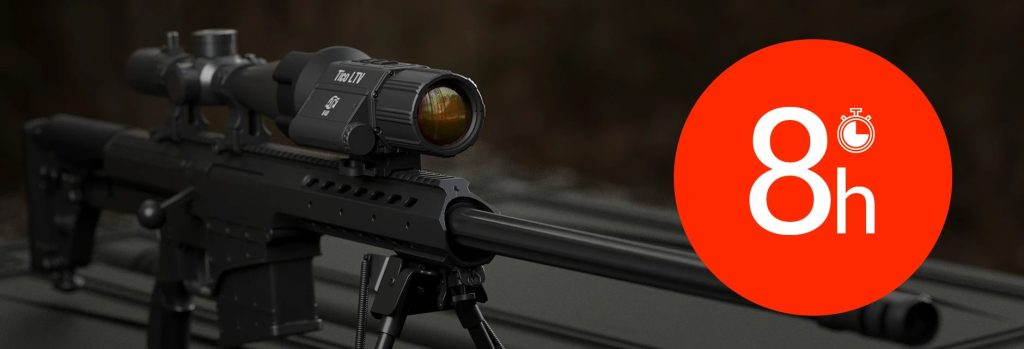

  • Battery Life: Up to 8 hours

  • Waterproof Rating: IP67

  • Operating Temperature: –4°F to +120°F / –20°C to +48°C

  • Detection Range: Up to 1300 yards

  • Dimensions: 5.2″ × 2.4″ × 3.1″ (132 × 60 × 78 mm)

  • Weight: 0.9 lb (420 g)

  • Warranty: 5 years

This device can be mounted
